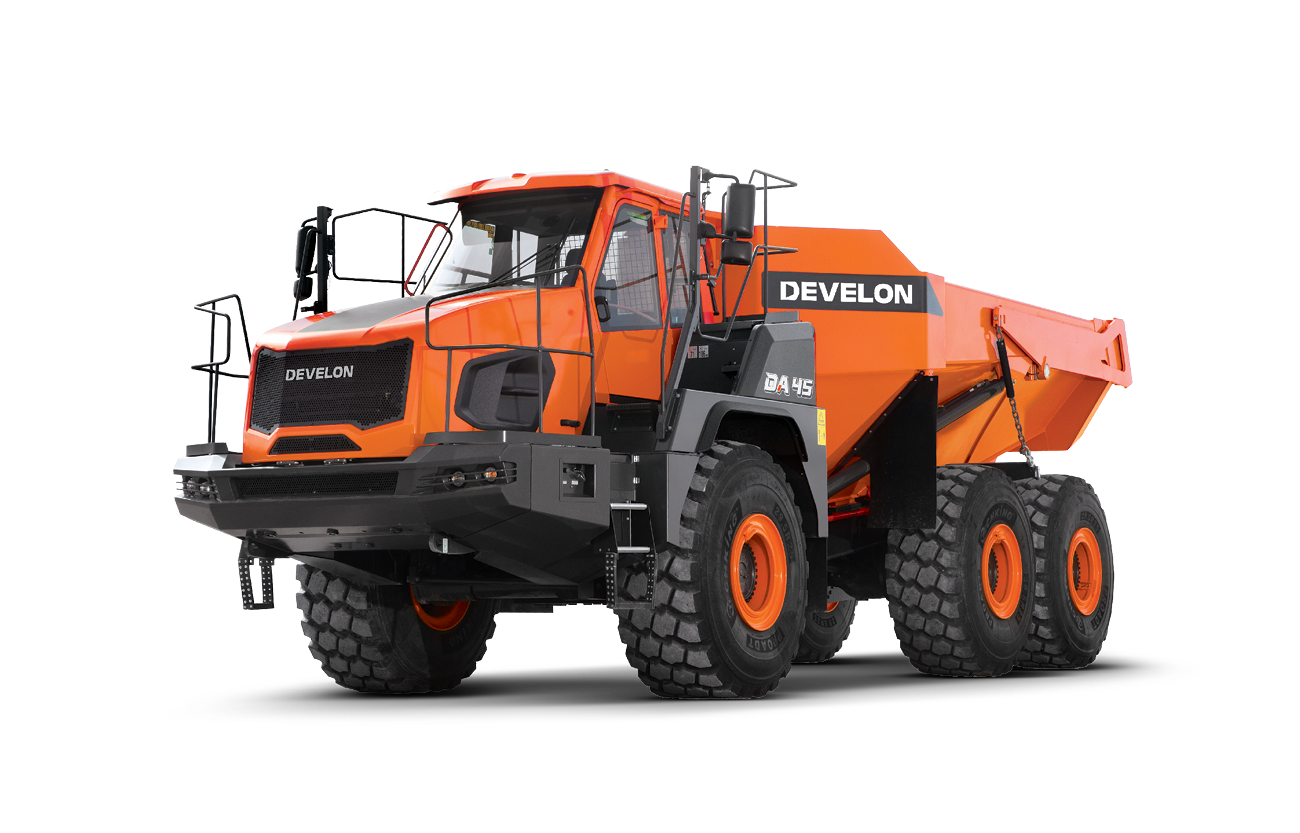

DEVELON DA45-5 Articulated Dump Truck

The DA45-5 articulated dump truck offers the power, technology, comfort and larger payload capacity for challenging non-road construction and mining applications. To protect against overloading, an active payload meter can use a traffic light indicator to alert operators.

You can count on better weight distribution for extreme performance and traction in off-road conditions. The unique DEVELON design with front-mounted turning ring, sloping rear frame and free-swinging rear tandem bogie ensures permanent 6-wheel ground contact. The limited slip differential delivers the highest torque to the wheel offering the best traction.

The hydro-gas, self-leveling front suspension system of the DA45-5 provides superior performance and greater shock absorption – which means a smoother ride and improved operator comfort especially when the machine is empty. The system includes a self-leveling feature and the ability to change characteristics by adjusting the pressure.

When it’s time to head out to another job, the machine's less-than-12-foot width makes it easier to transport from site to site.

Key service and maintenance points make required daily service checks and maintenance procedures more convenient, including ground-level fuel and DEF fill, more accessible power module and a centralized maintenance panel.

Common oil is used in the DA45-5 wheel hubs, tandem rear bogie and limited slip differential, and grease distribution is improved to reduce grease requirements. A diesel-powered engine heater and fuel pump are available as options. The DA45-5 articulated dump truck includes MY DEVELON fleet management with free cellular service for monitoring the machine’s health, location and productivity for the life of the machine.

Unparalleled cab comfort includes fully automatic climate control, a heated air suspension seat, precise steering, exceptional visibility and low noise levels. Ergonomic controls are at your fingertips and a soft-touch dashboard is easier to keep clean.

The vehicle control unit includes robust hardware, a faster processor and more input channels. The monitor displays critical information including speed, engine rpm, machine warnings and more – and offers bigger gauges, user-friendly graphics and the ability to display multiple camera views. Standard features include electrically adjustable mirrors and a mobile USB charger.

To reach Tier 4 emissions standards, the DA45-5 incorporates a high-pressure common-rail (HPCR) fuel delivery system. It also offers cooled exhaust gas recirculation (CEGR) combined with a diesel oxidation catalyst (DOC) and selective catalyst reduction (SCR). Learn more by reading about our Tier 4 technologies.

RATED HORSE POWER (NET): 482.8 hp @ 2100 rpm
Operating Weight (Unloaded): 67240 lb
Rated Payload: 89507 lb
Total Height: 12' 8"
Overall Length: 34' 11"
Total Width Outside Tires: 11' 5"
Turning Radius Outside Tires (ISO 7457): 27' 11"
TRAVEL SPEED MAX FORWARD: 34.2 mph
Body Volume Heaped 2:1 without Tailgate: 31.9 yd³
