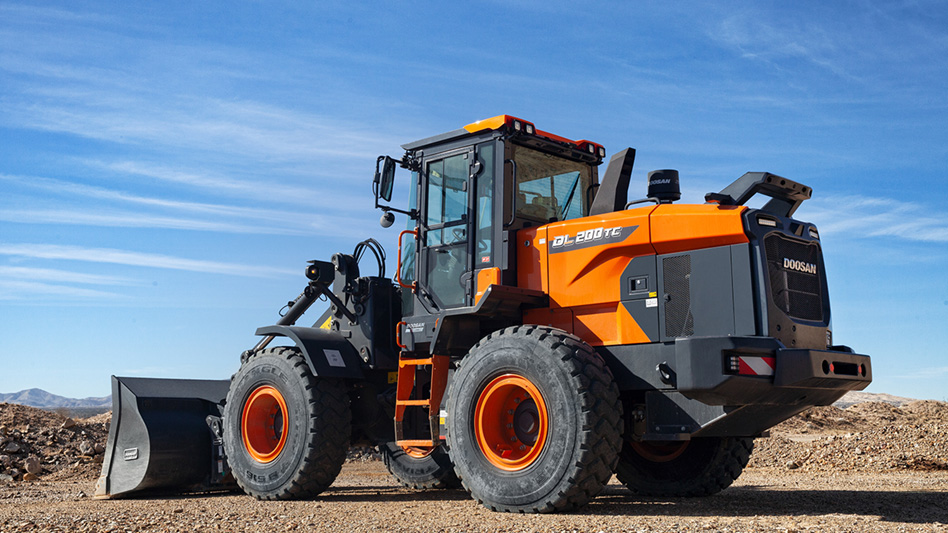

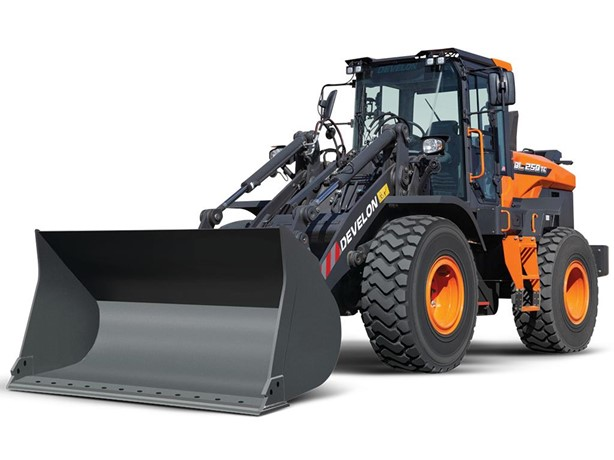

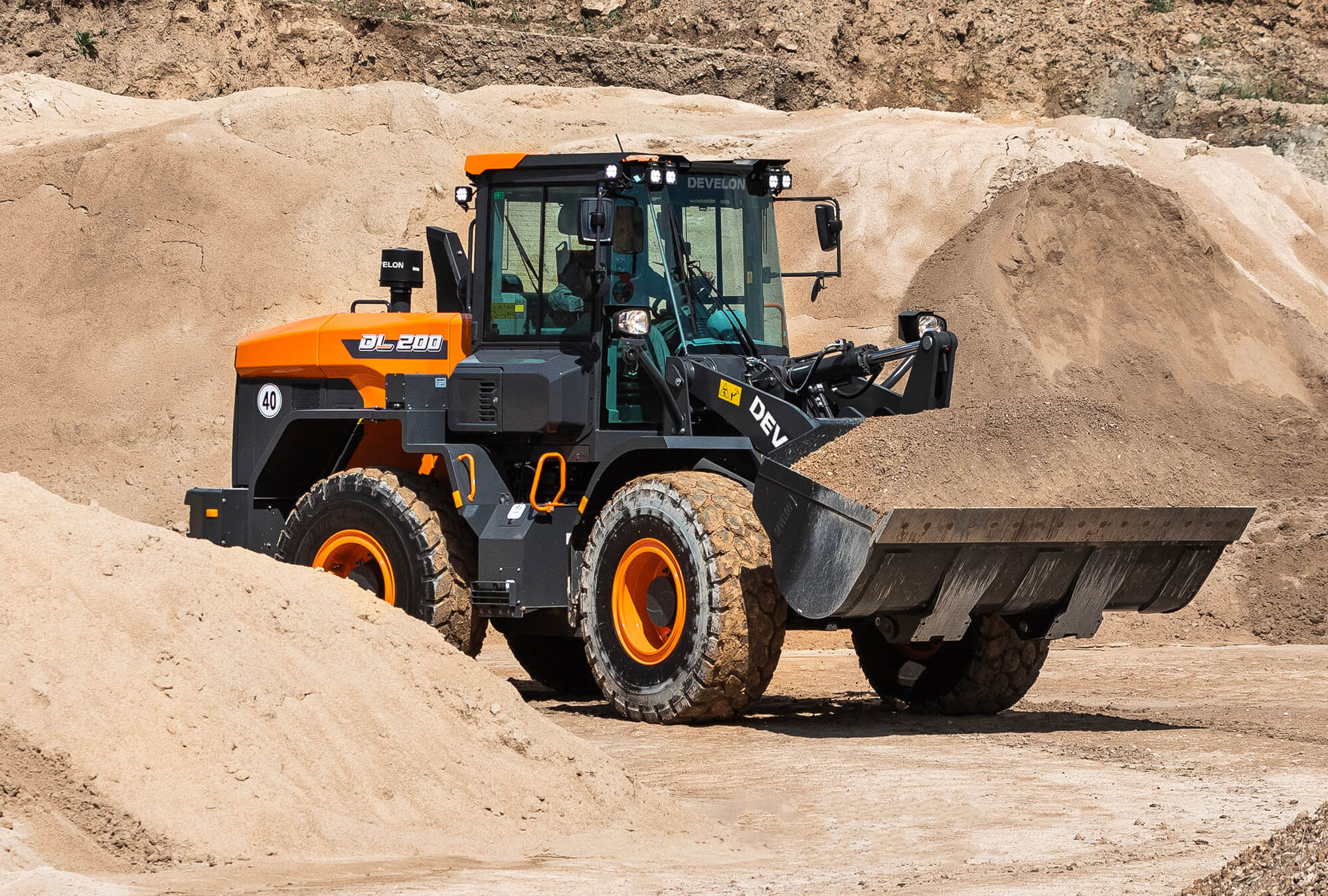

DEVELON DL200TC-7 Wheel Loader

The 2.6-cubic-yard DEVELON DL200TC-7 wheel loader features a parallel-lift linkage system that gives you precise control over a variety of attachments in applications other than loading, such as lift and place-type applications. This design keeps the attachment level, allowing for faster lifting and placing of materials.

An optional quick coupler makes it easy to change non-hydraulic wheel loader attachments without leaving your seat.

You can more easily load materials into high-sided trucks, hoppers or mixers. The new -7 Series wheel loaders provide enhanced visibility in loading applications.

The hydrostatic transmission offers fuel efficiency and reduced wear on the brakes. Limited slip differentials are included on both front and rear axles, and the optional Load Isolation System improves stability to reduce material loss when traveling across uneven surfaces.

The hydrostatic transmission delivers more power and improved precision with dynamic braking and speed management.

Use the convenient creep function to easily fine-tune the loader’s position without pressing the accelerator pedal.

For more control when doing precision work, the variable speed control offers seven preset speeds within the first gear. And using the traction control management system, you can easily adjust traction force to match jobsite conditions for efficiency in digging, stockpiling, and loading applications.

Load-sensing hydraulics improve fuel efficiency by adjusting hydraulic flow to optimal levels based on working conditions.

The DL200TC-7 offers stronger Dana axles that help lift larger loads, and an additional counterweight for added lifting performance. It also features wider radiator fin spacing and a standard reversible fan that clears dust, dirt, and other large debris to help prevent clogging.

The wheel loader’s durable box frame and articulating design deliver excellent rigidity and load distribution.

A deeper front fender provides additional wheel coverage that helps protect the windshield. Add the optional rear full fender for improved machine reliability.

With increased visibility down the center of the parallel-lift arms, you can see the ground, truck or work area in front of the machine. The DL200TC-7 also features increased glass area, full glass door, larger mirrors, standard rearview camera and optional LED work lights to improve overall visibility.

Plus, with the DEVELON-exclusive standard Transparent Bucket, you get a supplemental view “through the bucket” from an in-cab display.

The comfortable wheel loader cab offers relocated, intuitive controls and the DEVELON Smart Touch screen that displays all important information as well as the rearview camera view.

You’ll stay comfortable year-round thanks to the upgraded heating and air conditioning system.

Regular maintenance is easy to help keep your DL200TC-7 wheel loader working at top performance. You’ll have convenient access to components, fluid level checks, and centralized lubrication points.

To reduce operating costs, you can monitor your wheel loader and manage maintenance from a user-friendly app or website using the MY DEVELON fleet management system.

To comply with Tier 4 emissions standards, the DL200TC-7 incorporates a high-pressure common-rail fuel delivery system, cooled exhaust gas recirculation, a diesel oxidation catalyst, selective catalyst reduction with diesel exhaust fluid, and a diesel particulate filter.

Rated Horse Power (Net): 142.1 hp @ 2000 rpm
Main Pump: Max. Flow Rate (each): 40.9 gal/min
Operating Weight: 26867 lb
Overall Height: 10' 10"
Overall Length: 24' 8"
Wheel Base: 9' 9"
External Turning Radius at Bucket Edge: 19' 2"
Static Tipping Load (Straight): 20172 lb
Differential Type: Limited Slip Front/Rear
