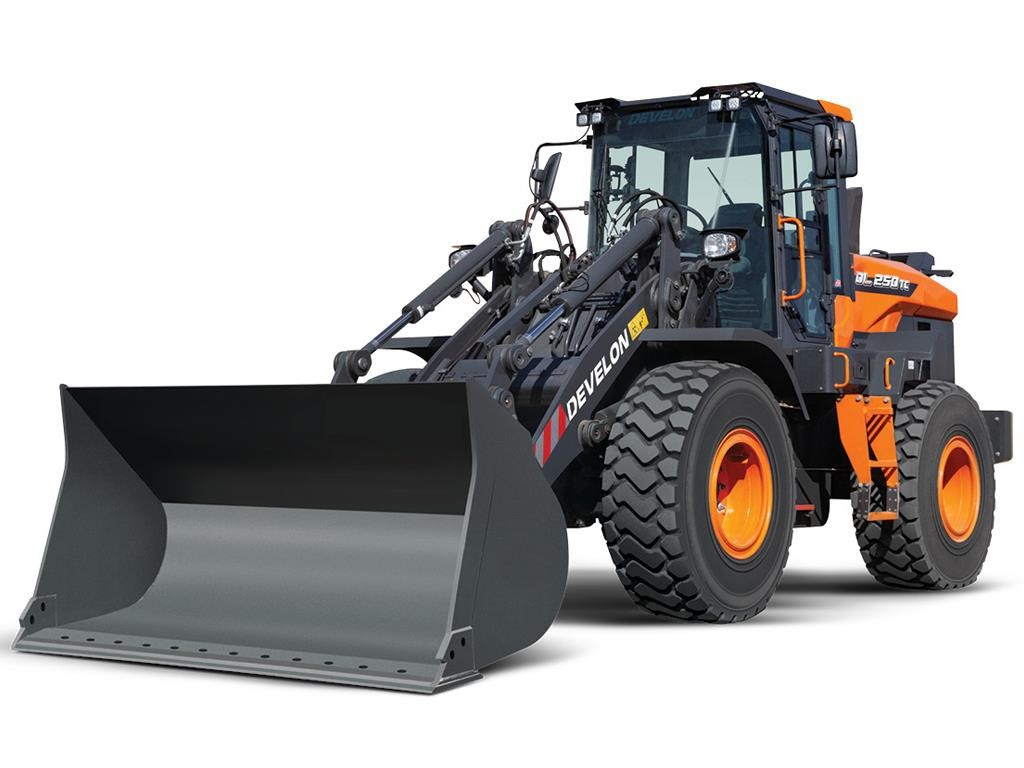

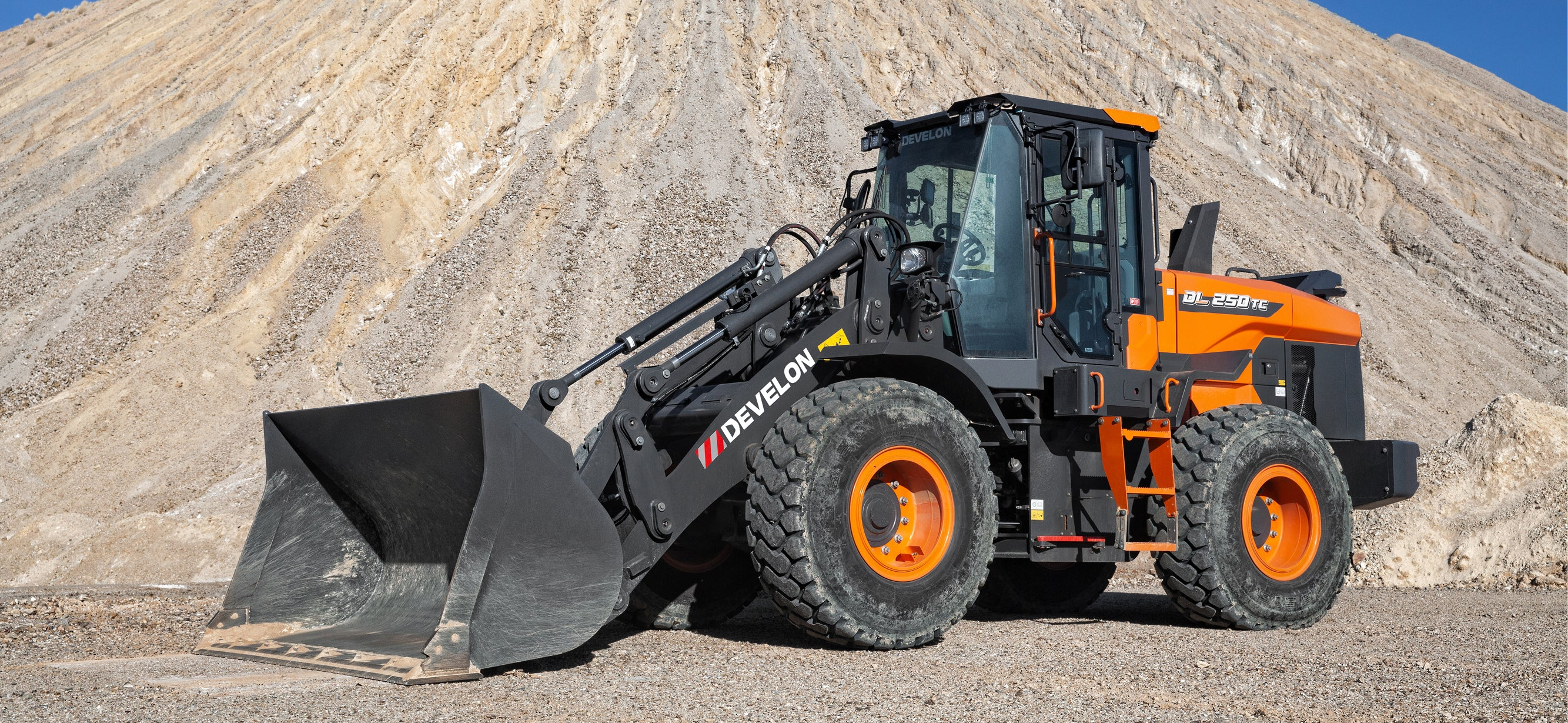

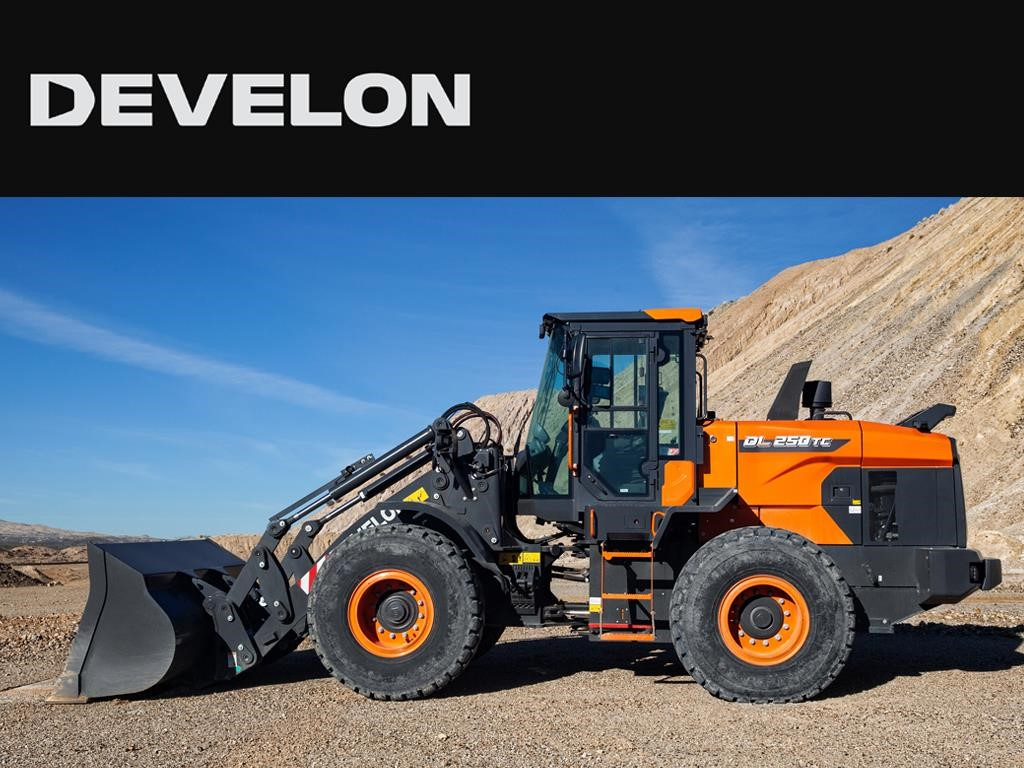

DEVELON DL250TC-7 Wheel Loader

The 3.3-cubic-yard DL250TC-7 articulating wheel loader features a parallel-lift linkage system that allows it to more precisely operate a variety of attachments in applications other than loading, such as lift and place-type operations.

The optional quick coupler is available for quickly changing non-hydraulic attachments.

It delivers heavy lifting in construction and agriculture applications and an additional counterweight is standard for extra machine stability.

The standard Ride Control improves stability and reduces material loss when the wheel loader is moving across uneven surfaces.

Built with durable components inside and out, the DEVELON DL250TC-7 wheel loader is designed to maintain uptime and productivity when doing the most challenging unloading and hauling.

It features heavy-duty ZF axles for lifting large bucket loads, a reinforced box frame that provides greater rigidity for improved structural life, and large self-centering, double-tapered roller bearings that better distribute loads.

Wider radiator fin spacing and a standard reversible fan clear dirt, dust, and other large debris to reduce clogging. Brakes are located on the outboard hub, extending the lifetime of the brake discs — and offering convenient maintenance access.

The wheel loader cab interior offers a roomy, quiet and comfortable environment for operators.

You’ll find frequently used controls within easy reach. There’s 14% more total glass area than on the previous model, including a full glass door that improves visibility. The view from the standard rearview camera appears on the DEVELON Smart Touch display — along with other machine information.

A DEVELON-exclusive standard Transparent Bucket gives you a supplemental view “through the bucket” from an in-cab display.

Additional upgrades include an automatic heating and cooling system, air suspension seat and optional electronic steering.

Keeping your DL250TC-7 running at peak performance is easier thanks to convenient component access, centralized lubrication points, and accessible fluid-level checks. Vented dust seals and covers help prevent grease overfill. A rear full fender option includes a new lock-and-release handle to maximize fender retention in the closed position — and makes maintenance easier.

MY DEVELON fleet management is standard, giving you the ability to monitor and manage machine maintenance using a user-friendly mobile app. You can also keep track of fleet status, machine location, operating hours, fuel usage, error codes, engine, and hydraulic oil temperatures, and various other data points.

The DEVELON DL250TC-7 features a variety of fuel-saving features, including automatic transmission modes that shift gears to maximize efficiency and standard auto-idle and auto-shutdown features.

Situation Awareness Technology helps save fuel by automatically adjusting engine output in real-time based on the needs of the drivetrain and hydraulics.

To comply with Tier 4 emissions standards, the DL250TC-7 incorporates a high-pressure common-rail fuel delivery system as well as cooled exhaust gas recirculation, combined with a diesel oxidation catalyst and selective catalyst reduction with diesel exhaust fluid.

Rated Horse Power (Net): 171.6 hp @ 2100 rpm
Main Pump: Max. Flow Rate (each): 48.8 gal/min
Operating Weight: 31605 lb
Overall Height: 10' 10"
Overall Length: 26' 2"
Wheel Base: 10' 0"
External Turning Radius at Bucket Edge: 20' 2"
Static Tipping Load (Straight): 20324 lb
Differential Type: Limited Slip Front/Rear
