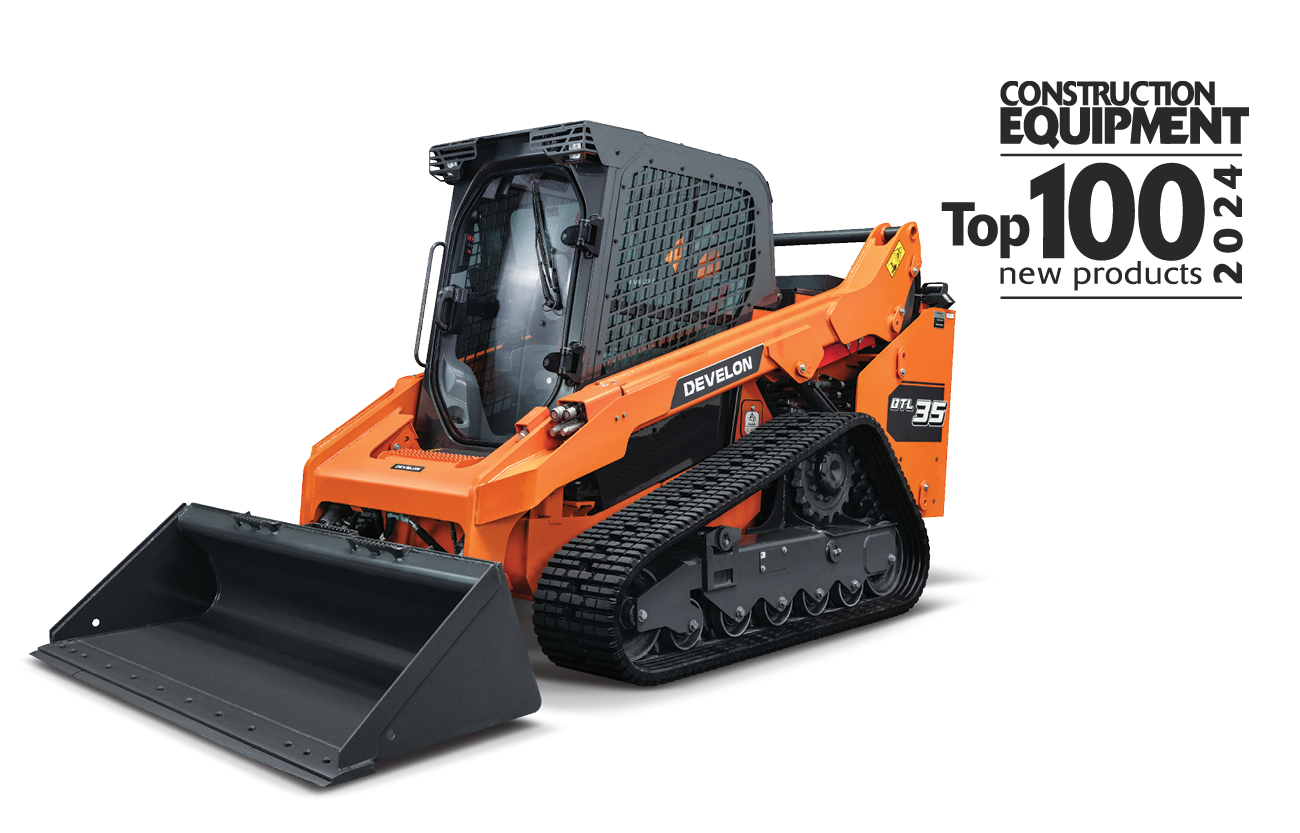

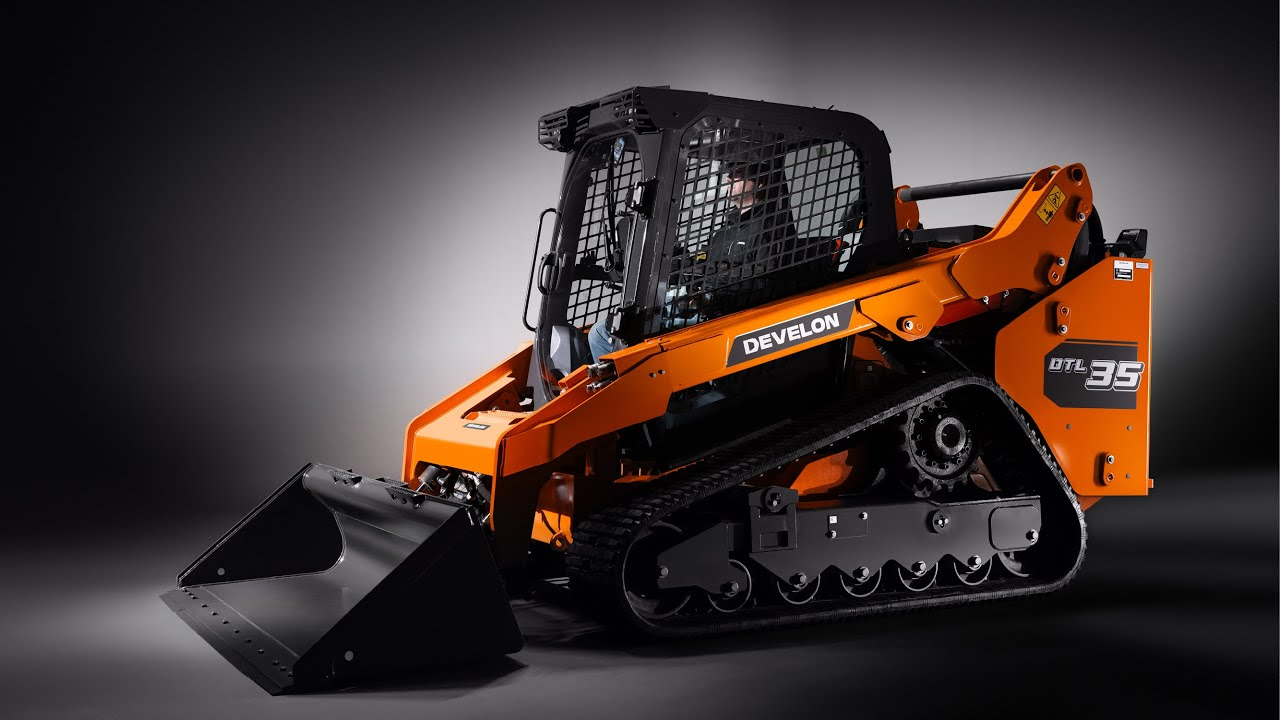

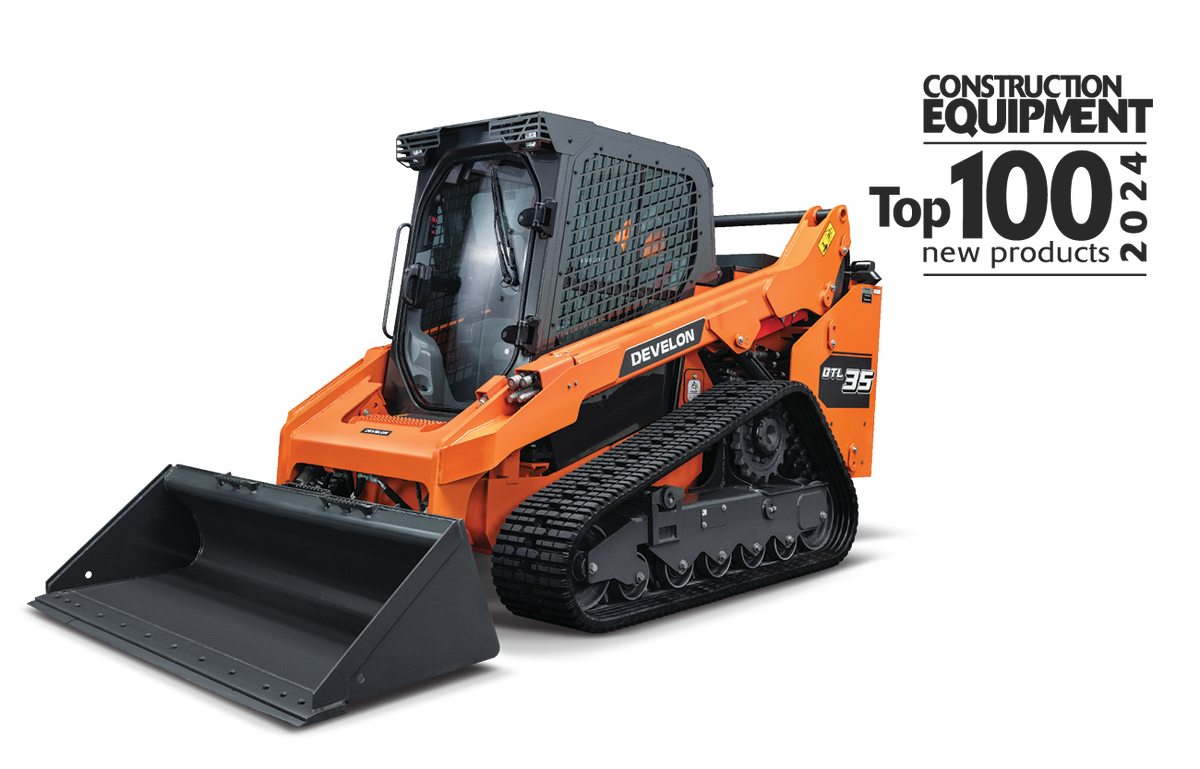

DEVELON DTL35 Compact Track Loader

With top-of-the-line horsepower (115.3), the DTL35 compact track loader is up for anything. Get the maneuverability, travel speed and power to get more done in the most challenging work areas.

Our ride control feature reduces shocks and vibrations, enhancing stability for the bucket and minimizing spillage when navigating rough terrain while carrying full loads. And creep control enhances the machine’s maneuverability and precision, giving you better control while operating at high rpms.

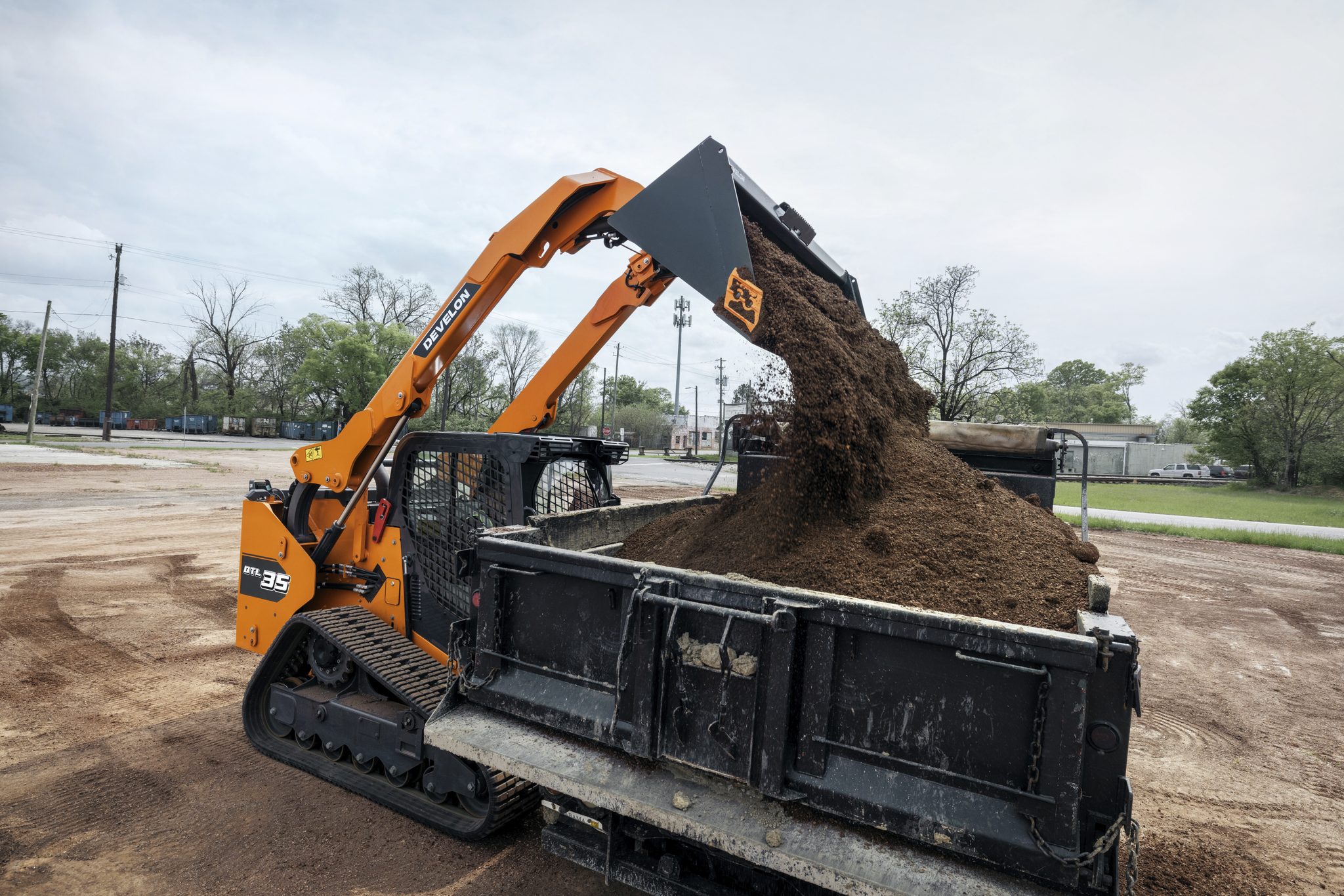

The DTL35 compact track loader is up for anything. Its vertical lift configuration and superior dump reach enable the machine to extend its forward reach, making it easier to deposit materials into high-sided trucks or other elevated areas. An optional 300-lb. additional counterweight further improves the machine’s lifting and hauling capacity.

The standard hydraulic quick-coupler-ready design and updated auxiliary hydraulics make for quick attachment changes.

The auto return-to-dig feature automatically returns the arms to the lowered position, saving time and delivering a more consistent digging depth. Its lift arm float enables attachments to automatically adjust to raised ground.

The DTL35 protects your productivity around every corner of your job site. A half-inch-thick polycarbonate door and one-piece cab design, which minimizes the number of joints and seams, creates a more durable cab that can withstand heavy-duty work environments. Two track patterns, each available in a wide or narrow option, let you choose the proper traction for your job site’s terrain.

Flange idlers guide and align the tracks, ensuring that they remain properly positioned on the undercarriage. A reversible fan and radiator screen protect against dust and debris to keep the compact track loader’s engine cleaner and cooler, which helps extend the life of your machine.

The DTL35 compact track loader keeps its operators comfortable and safe. It starts with a large frame and three-foot-wide interior, heated air-suspension seat with adjustable armrests, and intuitive controls. The large glass with narrower A-pillars helps you clearly see the terrain.

A rearview (backup) camera provides an additional view via an 8-inch Smart Touch display. The optional around view monitor (AVM) camera system with ultrasonic proximity sensors displays a 270° view of the machine’s surroundings. And the master ON/OFF switch offers one-touch control in the event that you need to quickly power the machine off.

To ensure the highest return on your investment, DEVELON adds the following premium features as standard equipment on your compact track loader:

• Adjustable air-suspension heated seat
• Auto self-leveling (up and down)
• Bucket shake
• MY DEVELON fleet management
• Polycarbonate door
• Rearview (backup) camera
• Return-to-dig feature and attachment positioner
• Reversible fan
• Ride control
• Torsion suspension

These premium features are available at no extra cost to you.

When it comes to regular maintenance, the DTL35 compact track loader is designed to help you ditch downtime. A one-piece tilting cab allows easy access to the engine and internal components, simplifying maintenance tasks. The swing-open tailgate provides direct access to the engine, filters, fluids and more.

Backed by our superior standard warranty, your new DEVELON machine includes full coverage for 36 months or 5,000 hours, whichever comes first. Plus parts and service support from your local authorized DEVELON dealer.

Rated Horse Power (Gross): 115.3 hp @ 2400 rpm
Max Aux. Flow: 22 gal/min
Standard/High Aux. Flow: 22 GPM (84 LPM) / 40 GPM (151 LPM)
Operating Weight: 12785 lb
Rated Operating Capacity (35% of Tipping Load): 3807 lb
Rated Operating Capacity (50% of Tipping Load): 5439 lb
Height to Top of Cab: 7' 0"
Length Without Bucket: 11' 1"
Vehicle Width (400mm Shoe): 6' 5"
Vehicle Width (450mm Shoe): 6' 7"
Max Travel Speed: 9.2 mph
Height to Hinge Pins at Max Lift: 10' 9"
Clearance at Max Lift and Dump: 8' 1"
Reach at Max Lift and Dump: 3' 10"
Track Idlers: Dual Flange Front / Single Flange Rear
Suspension: Torsion Axle System
