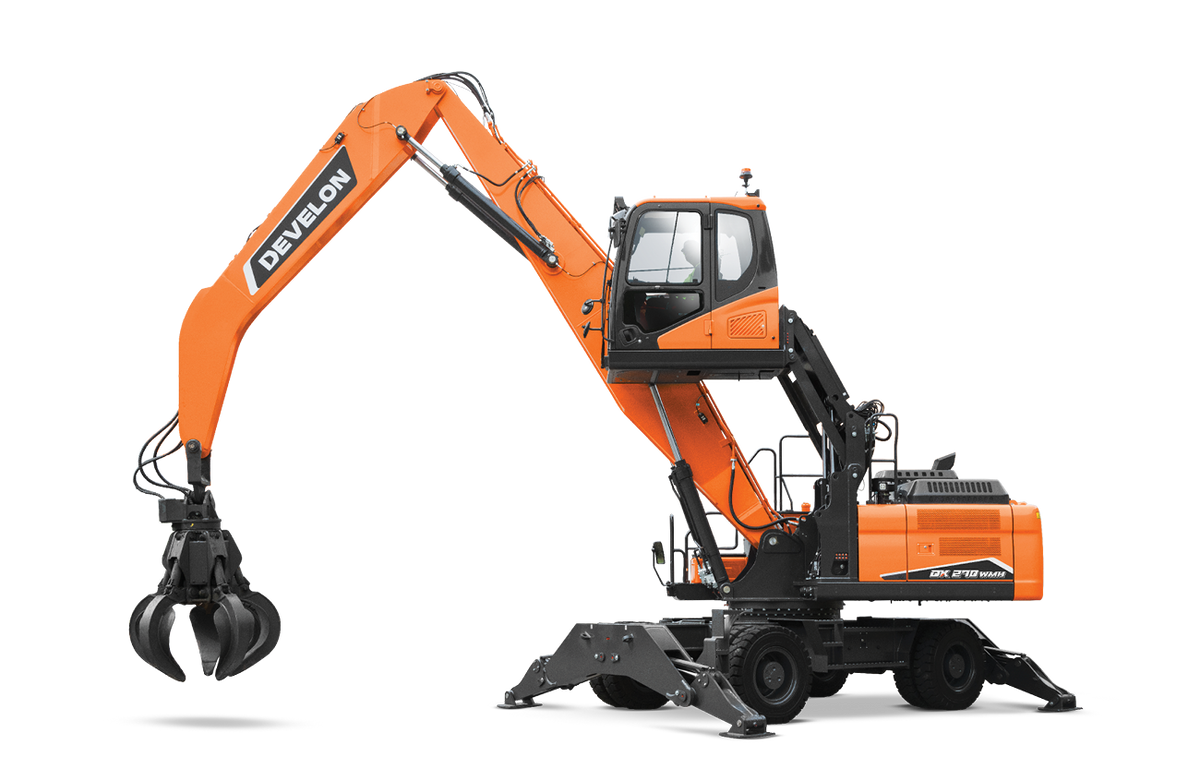

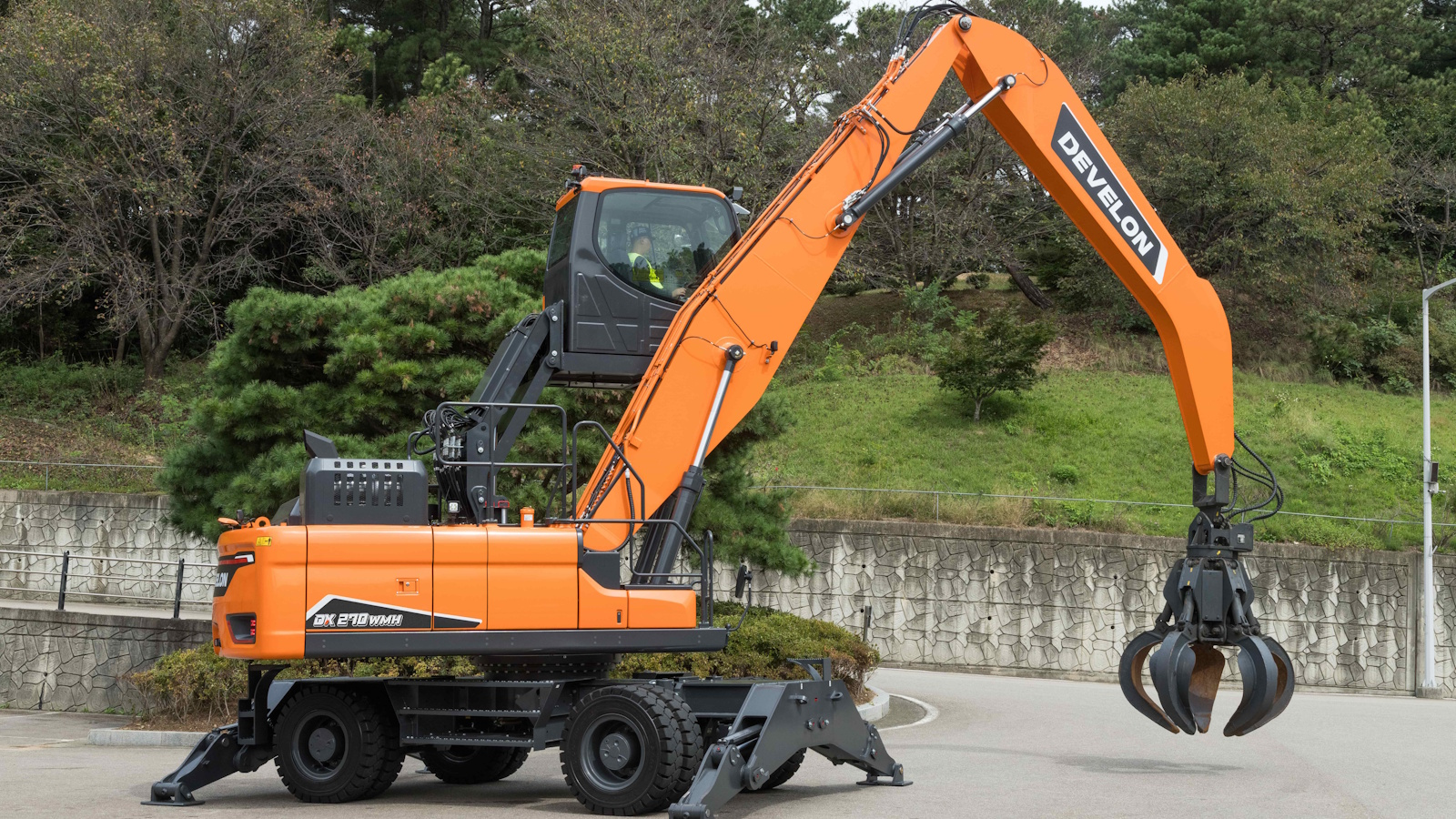

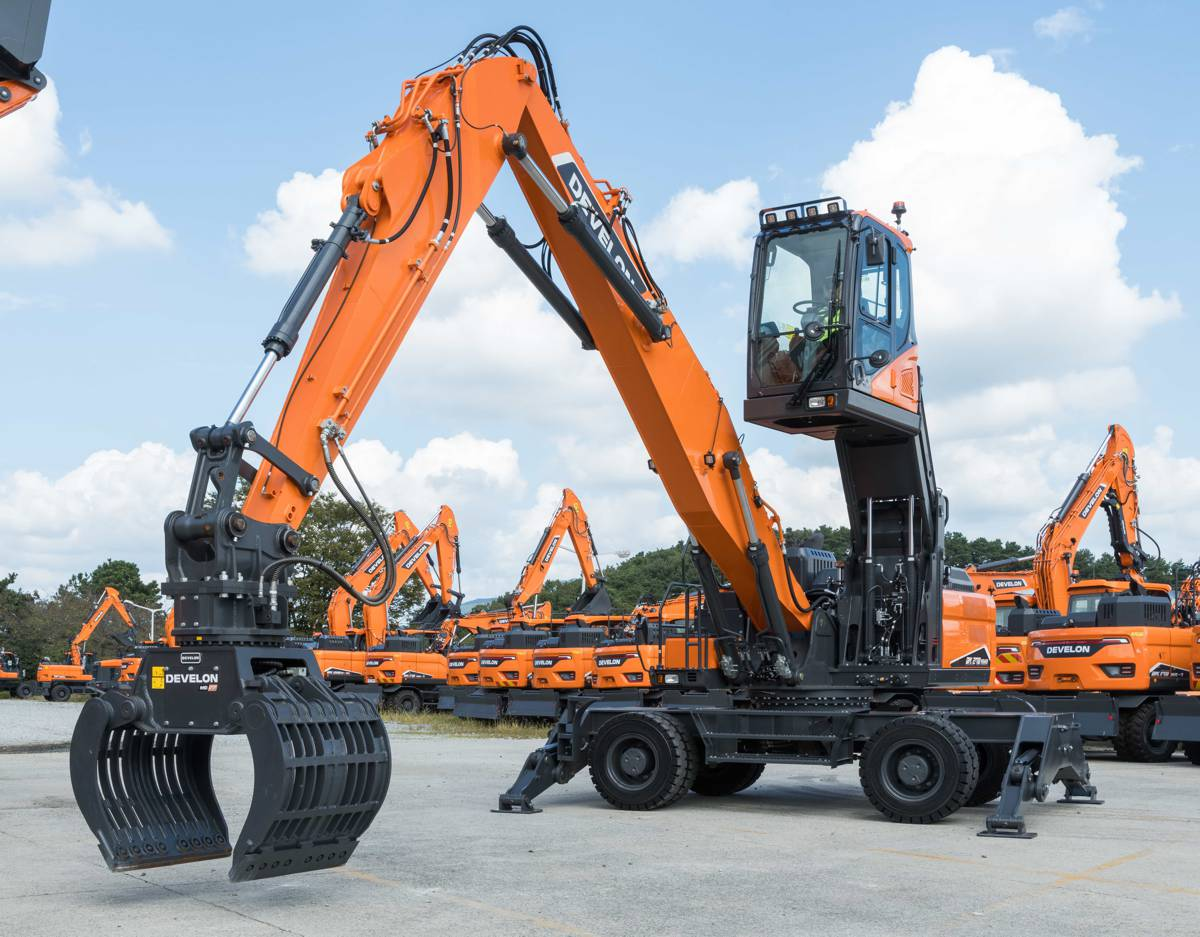

DEVELON DX270WMH-7 Wheel Material Handler

Ideal for large scrap or recycling yards and solid waste facilities with paved surfaces, the DX270WMH-7 easily handles car bodies and other bulk materials while efficiently loading trucks or barges at busy sites.

Now with up to a 5-foot longer reach and hydraulic cab that can be raised and lowered, the DX270WMH-7 positions operators for better productivity. The virtual wall setting on -7 Series models stops the boom and arm from hitting surrounding objects, helping operators work confidently in tight spaces.

The machine’s box welding design strengthens high-stress areas of the machine (e.g., boom and frame), increasing rigidity and resistance to torsion or flexing. A wider under chassis creates a more secure base for lifting material and easier access for operator entry.

The DX270WMH-7 keeps operators comfortable and productive all day long. An upgraded standard heated and cooled air-suspension seat lets you customize your level of comfort. An easy-to-read 8-inch LCD monitor displays machine diagnostics and controls that improve performance. Bluetooth® hands-free radio and MP3 audio let you listen to your favorite content while keeping your hands free to work the controls.

The DEVELON DX270WMH-7 wheel material handler boasts a DPF-free after-treatment system for simpler maintenance. Centralized arm and boom grease points come standard and make routine upkeep more convenient. The standard MY DEVELON fleet management system helps you stay on top of machine health, performance and maintenance schedules. Plus, a reversible fan for the radiator helps prevent debris from entering the machine and an oil cooler helps keep the machine from overheating.

Wider outriggers on the DX270WMH-7 wheel material handler create a wider base that improves stability, especially while operators work at higher lifting capacities. Collision prevention keeps the grapple and cab from colliding during operation. A hydraulic cab provides an easy point of entry when lowered and greater visibility to the work site when raised. Standard front and rear LED working lights, and standard around view monitor (AVM) camera system provide added visibility.

Rated Horse Power (Net): 171.2 hp @ 1900 rpm
Main Pump: Max. Flow Rate (each): 62.3 gal/min
Swing Performance: Max Swing Torque: 60815.1 lbf·ft
Travel performance: Traction Force (Highest Value): 26456 lbf
Operating Weight: 61950 lb
Max Digging Reach (Ground): 31' 2"
Max Loading Height: 23' 4"
