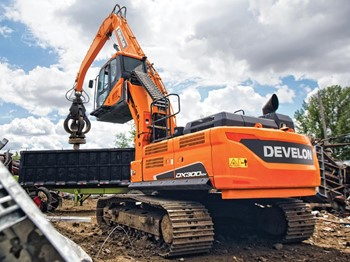

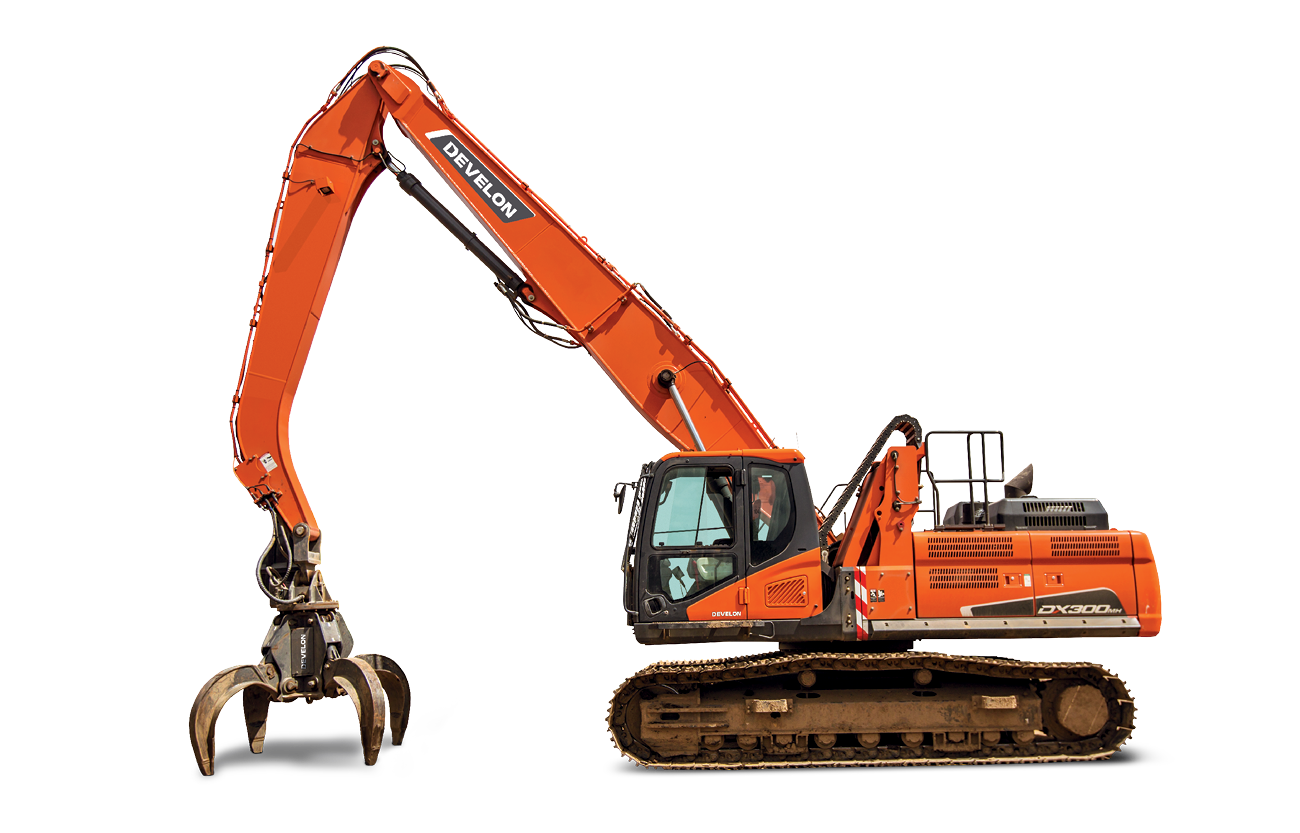

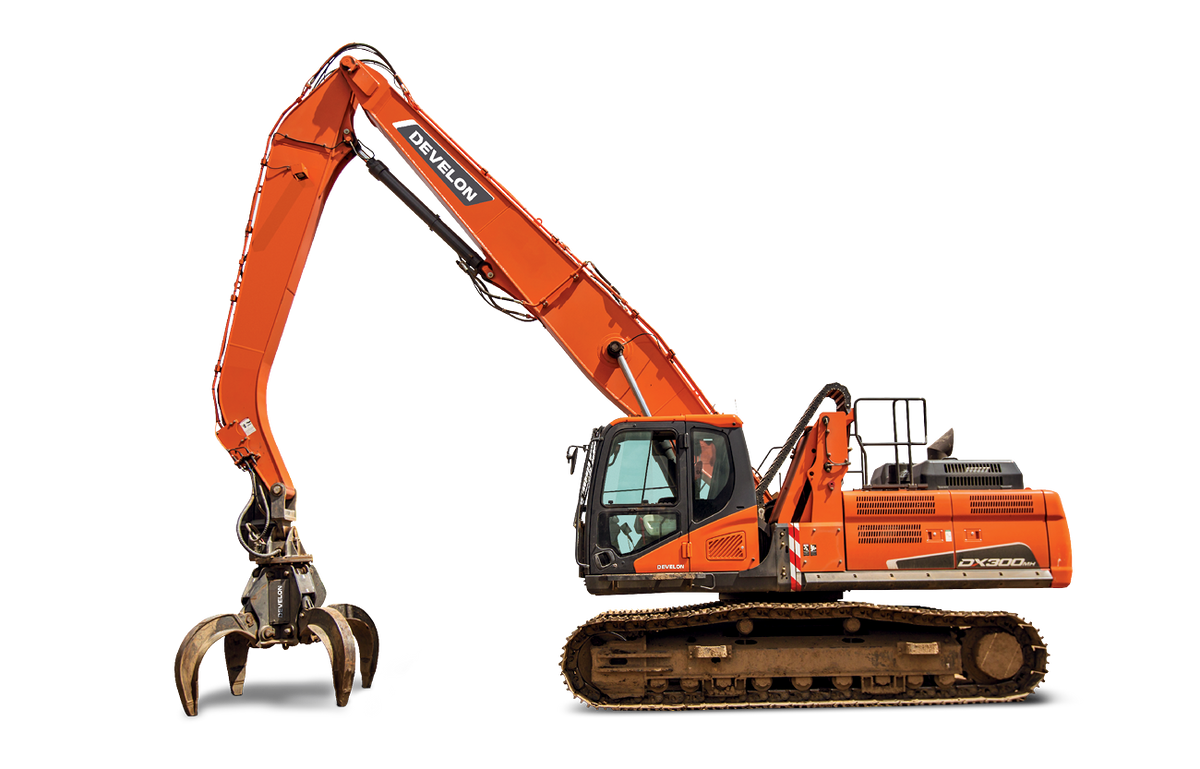

DEVELON DX300MH-5 Material Handler

As the largest material handler in the lineup, the DEVELON DX300MH-5 is built for the most demanding material handling functions. It features a fixed 6 ft. cab riser with hydraulic tilt, straight boom and droop nose stick, sandwiched counterweight, rotate grapple ready hydraulics, and additional guarding.

In addition to four power modes, the DX300MH-5 includes lifting work mode, which provides increased pump torque, low engine RPMs, and an automatic power boost.

Careful design, high-pressure common rail fuel injection and four valves per cylinder deliver increased torque and efficient fuel consumption. High-capacity pumps improve productivity, while the swing drive provides rapid cycles.

Cooling features of the DX300MH-5 include a variable speed fan and a split cooling system, which utilizes both hydraulic oil and engine coolant.

To reach Tier 4 emissions standards, the DX300MH-5 incorporates a high-pressure common-rail (HPCR) fuel delivery system as well as cooled exhaust gas recirculation (CEGR) combined with a diesel oxidation catalyst (DOC) and selective catalyst reduction (SCR). Read about our Tier 4 technologies to learn more.

Rated Horse Power (Net): 267 hp @ 1800 rpm
Main Pump: Max. Flow Rate (each): 65.51 gal/min
Swing Performance: Max Swing Torque: 87787 lbf·ft
Travel performance: Traction Force (Highest Value): 2587738 lbf
Operating Weight: 79366 lb
Max Digging Reach (Ground): 42' 7"
Max Loading Height: 46' 3"

Download Full Specs
