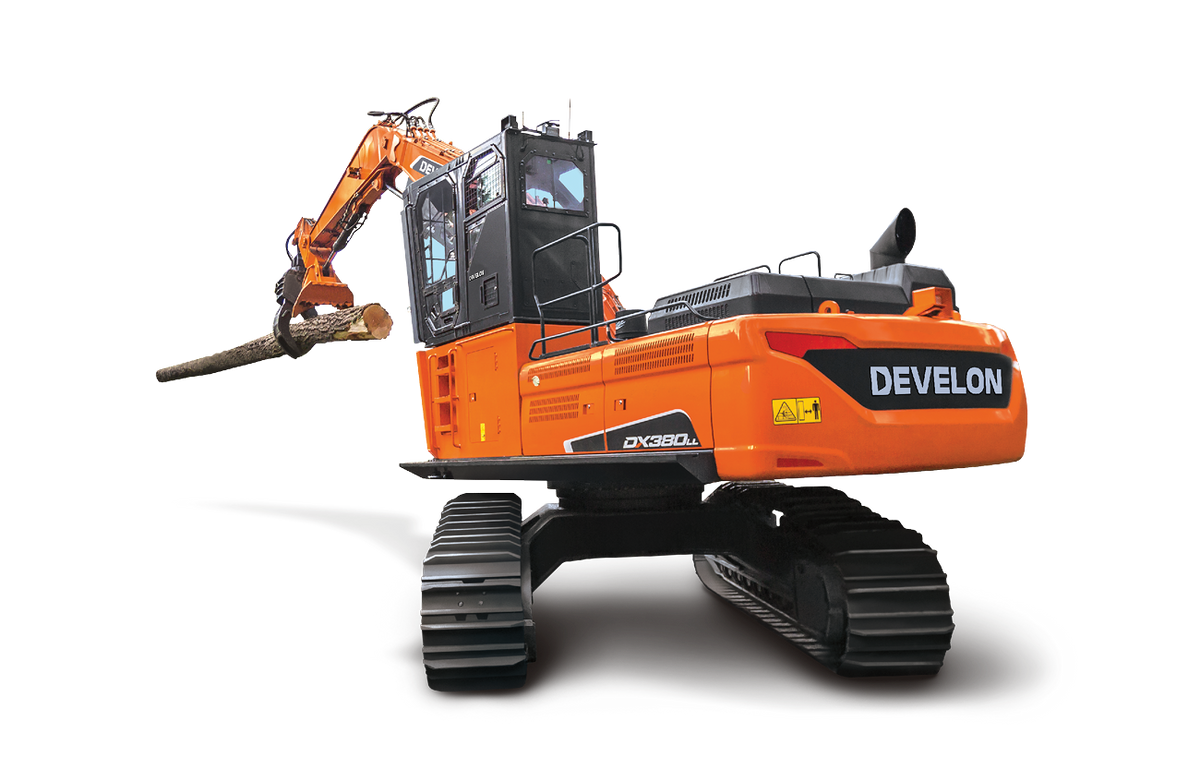

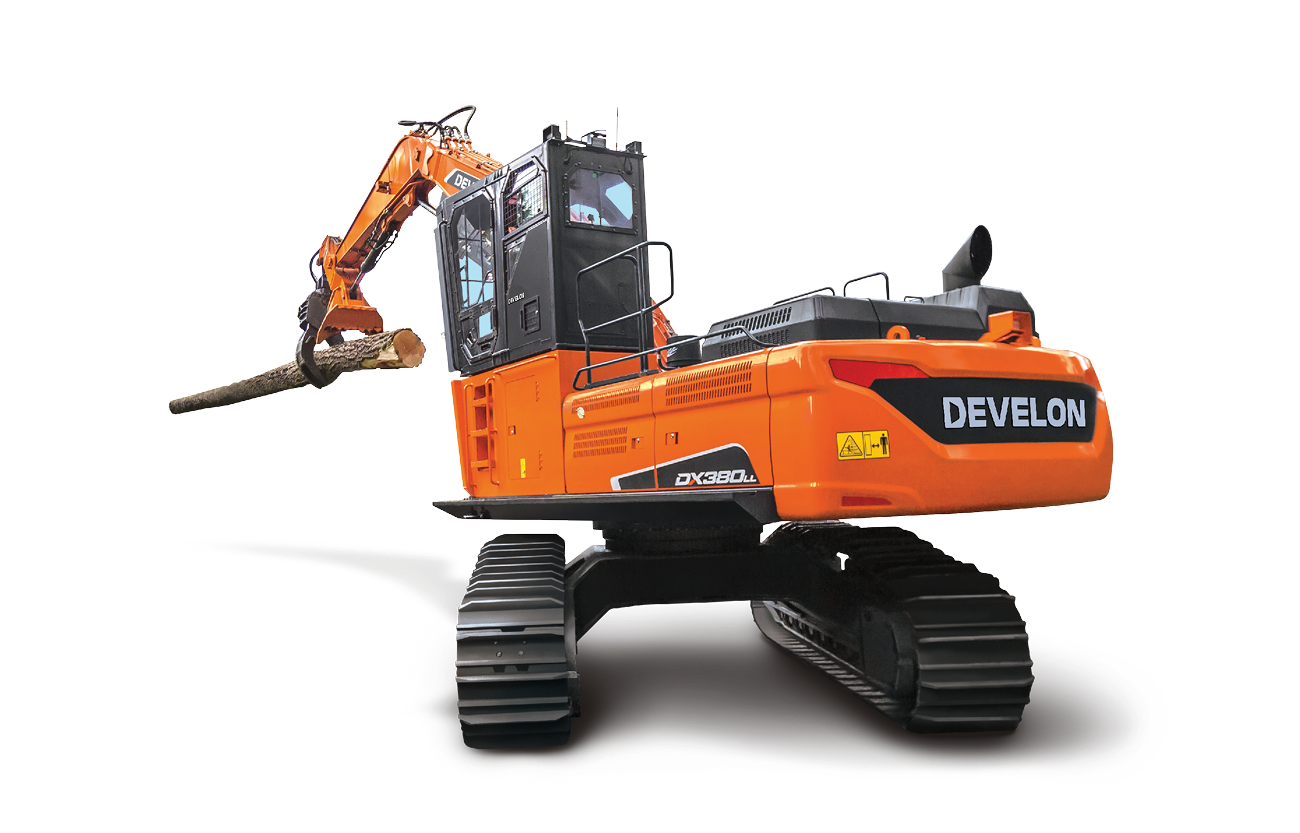

DEVELON DX380LL-5 Log Loader

With roots in performance and strength, the DEVELON DX380LL-5 log loader takes on the forestry industry’s challenging work environment with its rugged design.

Created to take on difficult terrain, the DX380LL-5 features a high and wide undercarriage design. The undercarriage allows the DX380LL-5 to clear stumps, branches and traverse small inclines while maximizing stability. The tracks feature durable links with double grouser shoes and full-length rock guards. The undercarriage also has heavy-duty top rollers with special clean-out brackets to reduce the risk of downtime while traveling on challenging terrain.

The upper structure offers superior protection against some of the toughest work environments. It features durable guards along the front, side, the arm cylinder and the boom cylinder. LED lighting helps operators spot obstacles when there is little sunlight. The cab features a 4 ft.riser with guarding and for transport, a hydraulic lift.

The DX380LL-5 offers high swing torque and long reach for quick picking, moving and placing of heavy loads. Contributing to operator productivity, the pattern change valve allows operators to toggle between control patterns without hassling with hydraulic hoses.

The optional side-entry forestry cab is certified for Oregon OSHA and British Columbia WCB standards. It features a guarded polycarbonate front window, polycarbonate side and rear windows and a rear secondary exit.

An intelligently designed cab makes it easy to focus on your work. You're surrounded by more foot space, better visibility, and automatic air conditioning with adjustable airflow. Work comfortably with the standard air suspension seat and simple controls.

Auto-shutdown turns off the engine after reaching a preset idle time, which reduces fuel consumption. Operators can adjust this idle time from 3 to 60 minutes. The Electronic Power Optimizing System (EPOS) links the hydraulic system and engine control for productivity while minimizing fuel consumption.

Choose from Standard Mode for optimized fuel consumption and general working conditions, Power Mode for faster cycle times and heavy-duty work requirements or Economy Mode for reduced fuel consumption in reduced demand applications. Save fuel with auto-idle, and be more productive with precisely controlled hydraulic flow rates.

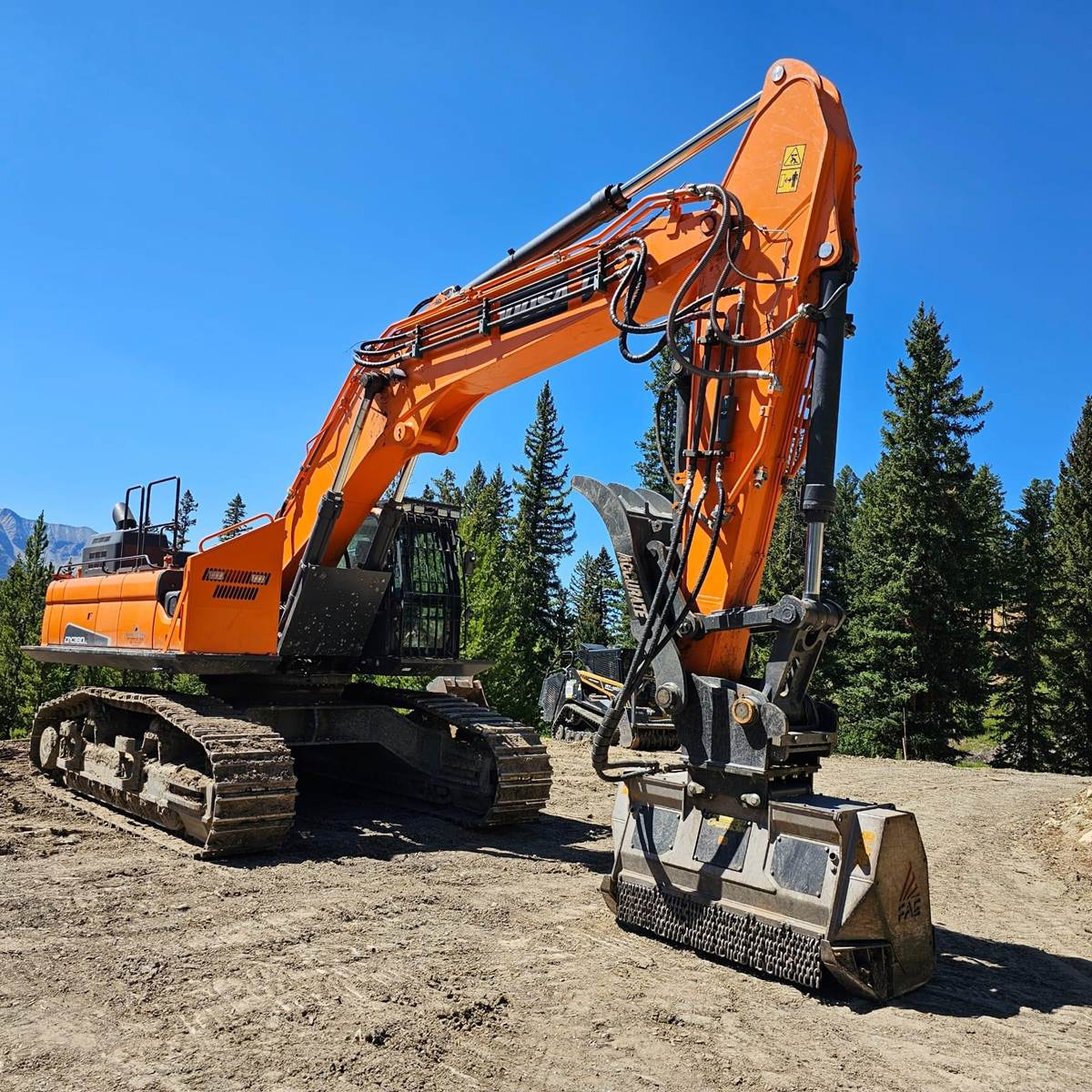

The rugged DX380LL-5 road builder is built to clear paths through the most challenging environments. Designed with a standard excavator cab for lower, smoother transport and a high, wide undercarriage, this heavy-duty road builder cuts through large tracts of land with enhanced efficiency and productivity. Heavy-duty track links and full-length guiding guards give the DX380LL-5 added stability to maneuver while working. Plus, each new road builder can be easily reconfigured with a hydraulic quick coupler and various buckets and thumbs to adjust to various applications or working conditions.

Rated Horse Power (Net): 312.5 hp @ 1800 rpm
Main Pump: Max. Flow Rate (each): 95.1 gal/min
Swing Performance: Max Swing Torque: 129876 lbf·ft
Travel performance: Traction Force (Highest Value): 8813 lbf @ 85
Operating Weight: 113538 lb
Maximum Loading Height: 38' 5"
Max Digging Reach (Ground): 43' 4"
